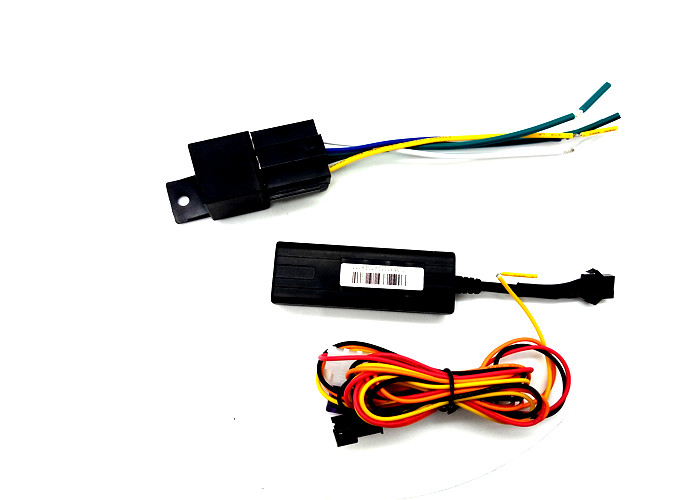

Mini 4G GPS Tracker for Car Vehicle Tracking Device with Moving Alarm C003-01-4G Model
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
Mini 4G GPS Tracker for Car Vehicle Tracking Device with Moving Alarm C003-01-4G Model
Platform
| up to 180 days historical route track | electronic fence, out of the regional alarm |
| deviate planning route alarm | serious collision warning (optional); |
| rollover warning (optional); | overspeed alarm |
| report output | Free to use |
Features
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Mini 4G GPS Tracker for Car Vehicle Tracking Device with Moving Alarm C003-01-4G Model
Frequency:
Europe / Middle East / Africa / South
Korea / Thailand EC25-E: | LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8 |
North America EC25-A
EC25-V | LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13 |
Australia/New Zealand/Taiwan/Brazil
EC25-AU | LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8 |
Japan
EC25-J | LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19 |
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Mini 4G GPS Tracker for Car Vehicle Tracking Device with Moving Alarm C003-01-4G Model
Preparation for the installation
1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 . Put back the front cover and screw it up.
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 . Install the device in the hidden place of the car；
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
What is your cell phone number?
My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
